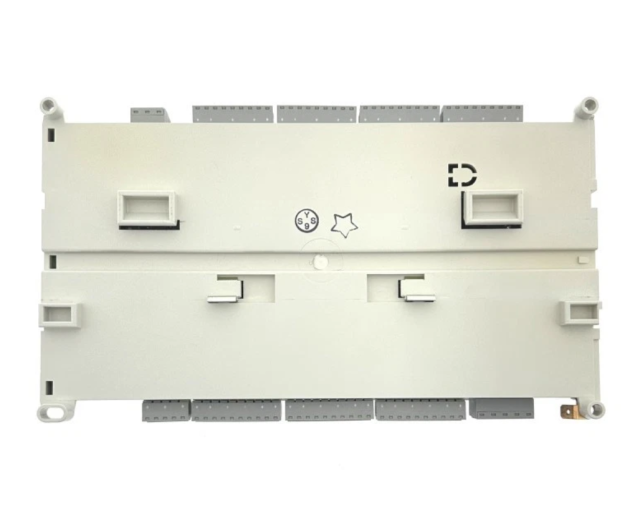

The basic unit 07 KT 97 R200 is the standard device for all applications. In addition, there are basic units with reduced performance (e.g. 07 KT 95 or 07 KT 96) as well as ones with extended performance (e.g. 07 KT 97 R260 with ARCNET connection, 07 KT 97 R0220 with PROFIBUS connection and 07 KT 97 R0262 with both ARCNET and PROFIBUS connection). A comparison table is given on page 3. This document describes the basic unit 07 KT 97 R200 and then adds the data sheets of the other devices which only show the differences.
Functionality of the basic units 07 KT 97User program 480 kB
User data 256 kB (Flash EPROM)
Digital inputs 24 in 3 groups of 8 each, electrically isolated
Digital outputs 16 transistor outputs in 2 groups of 8 each, electrically isolated
Digital inputs/outputs 8 in 1 group, electrically isolated
Analog inputs 8 in 1 group, individually configurable to 0...10 V, 0...5 V, +10 V, +5 V, 0...20 mA,
4...20 mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs
Analog outputs 4 in 1 group, individually configurable to 0...10 V, 0...20 mA, 4...20 mA
Serial interfaces COM1, COM 2 as MODBUS interfaces and for programming and test functions
Parallel interfaces for
connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable)
System bus interface CS31
Integrated couplers see next page
High-speed counter integrated, many functions configurable
Real-time clock integrated
SmartMedia Card memory medium for operating system, user program and user data
LED displays for signal conditions, operating statuses and error messages
Power supply voltage 24 V DC
Data backup with lithium battery 07 LE 90
Programming software 907 AC 1131
General Information
Product ID: GJR5253000R0270
ABB Type Designation: 07KT97
Catalog Description: 07 KT 97 central processing unit
Additional Information
ABB Type Designation: 07KT97
Ambient Air Temperature: Operation 0 ... +55 °C
8 channels, 0 ... +5V, -5 ... +5V, 10 bit +sign, 0 ... +10V, -10 ... +10V, 11 bit+sign, 0 ... 20mA, 4 ... 20mA, PT100 (2 or 3 wire), 12 bit, bipolar, the analog inputs are also usable as digital inputs
Analog Outputs: 4 channels, -10 ... +10V, 11 bit+sign, 0 ... 20mA, 12 bit
Country of Origin: Germany
Customs Tariff Number: 85371091
Fieldbus Interface Type: Ethernet TCP/IP
Invoice Description: 07 KT 97 central processing unit
Maximum Hardware Counter Input Frequency: 50 kHz
Maximum Number of Analog I/Os: 232 AI, 228 AO
Maximum Number of Digital I/Os: 1024
Memory Size User Data: 256 kB
Memory Size User Program: 480 kB
Memory Type User Data: Flash EPROM
Memory Type User Program: Flash EPROM, non-volatile RAM, SMC
Minimum Order Quantity: 1 piece
Number of Analog Configurable I/Os: 0
Number of Digital Configurable I/Os: 8
Number of Digital Inputs DC 24V: 24
Number of Digital Outputs DC 24V: 16
Number of Hardware Counters: 2
Object Classification Code: K
Output Voltage (Uout): 24 V DC
Package Level 1 Gross Weight: 1.1 kg
Package Level 1 Units: 1 case
Product Main Type: 07KT97
Product Name: 07 KT 97 central processing unit
Product Net Weight: 5.4 kg
Product Type: Spare_Parts
Programming Software: AC1131
Selling Unit of Measure: piece
Serial Port 1 Type: RS232 / Programing, Modbus Master or slave
Serial Port 2 Type: RS232 / Modbus Master or slave, ASCII
Short Description: 07KT97-ETH:AC31,Prog.Logic Controller
Speed for 1000 instructions (65% Logic, 35% Word): 0.3 ms
Stocked At (Warehouses): Menden, Germany
Terminal Type: Screw Terminals, Pluggable
